Werner
| Fiberglass Three Section Extension Ladder D6200-3 Series | |
|---|---|
| Style | Extension Ladder |
| Material | Fiberglass |
| Load Capacity | 136 KG |

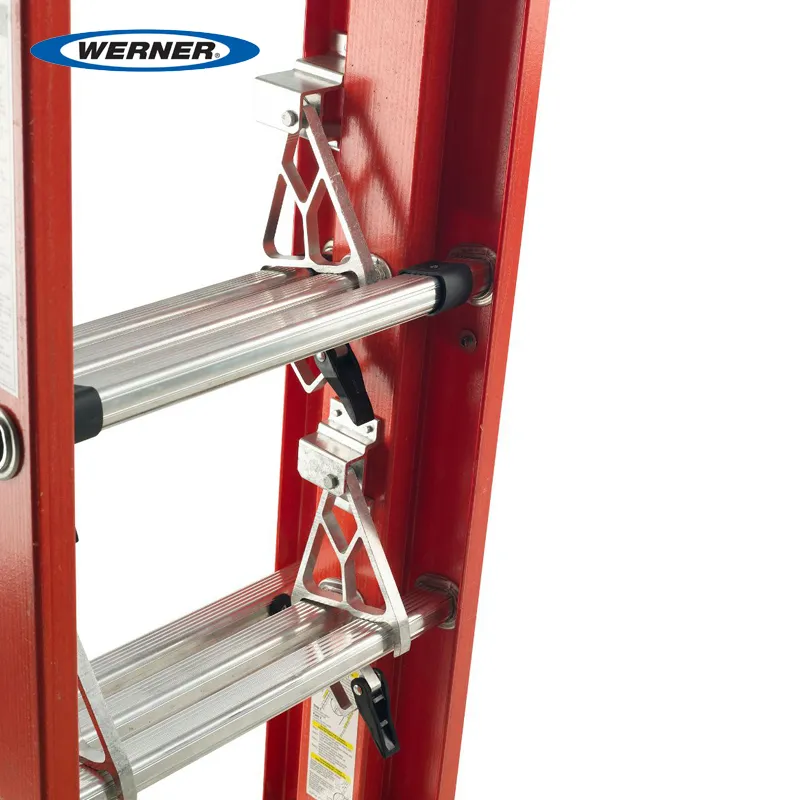

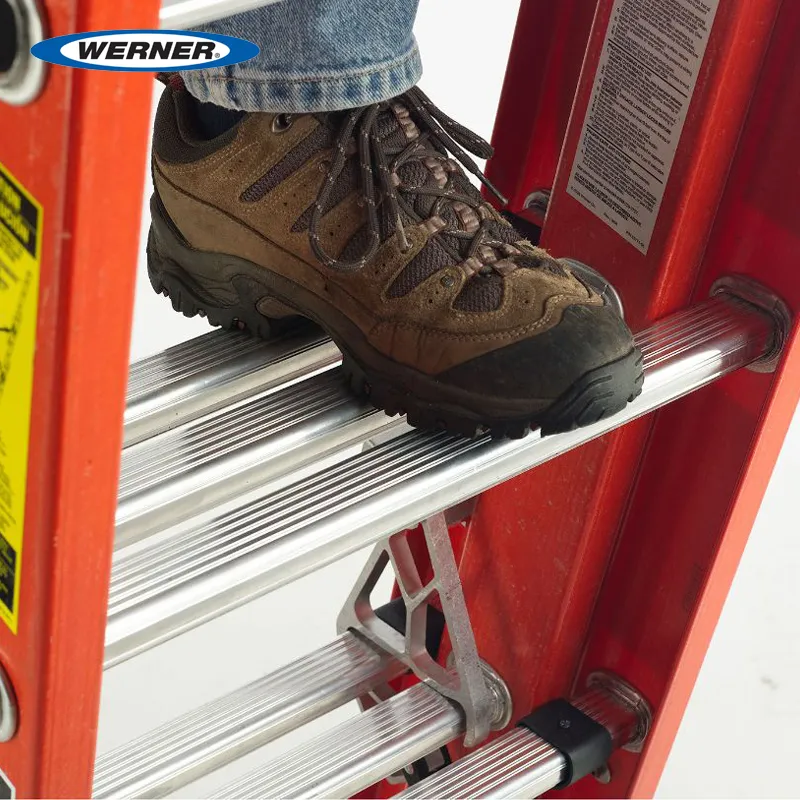

| Features | • External guides at top of base section securely interlock rails • Heavy Duty extruded rung locks are spring loaded to operate smoothly • Combination Rail Shield Bracket and Shoe with SHU-LOK® and Slip-Resistant Pad • Molded Rung Braces on bottom step for increased durability • Mar-Resistant Molded End Caps • Ladder is consided 31 ft by ANSI standards • Ladder extends to 25 ft working height, same as D6228-2 • 2 rope system with smooth operating pulley and polyester rope • Compact 3 section design is 2 ft shorter than a 2 section ladder when stored • Exclusive ALFLO® rung joint means TWIST-PROOF® performance • 1-5/8 in slip-resistant TRACTION-TRED® D-rungs • Interlocking Side Rails with internal rail guides on bottom of fly section securely connect rails |
| *Please allow some +- tolerance in measurement | |
| Code | Size (FT) | Max Working Height (FT) | Max Open Extended Length (FT) | Approx Closed Length (FT) | Reach Height (FT) | Approx Shipping Weight (KG) |
| D6216-3 | 16' | 13' | 13' | 6' | 15' | 18.4 |
| D6220-3 | 20' | 17' | 17' | 8' | 19' | 18.4 |
| D6224-3 | 24' | 21' | 21' | 9' | 23' | 27.7 |
| D6228-3 | 28' | 25' | 25' | 11' | 27' | 33.8 |
| D6232-3 | 32' | 29' | 29' | 12' | 31' | 36.7 |
