Werner
| D7128-2LV 28 ft Type IAA Fiberglass D-Rung Leveling Extension Ladder | |
|---|---|
| Style | Extension Ladder |
| Material | Fiberglass |
| Load Capacity | 170 KG |

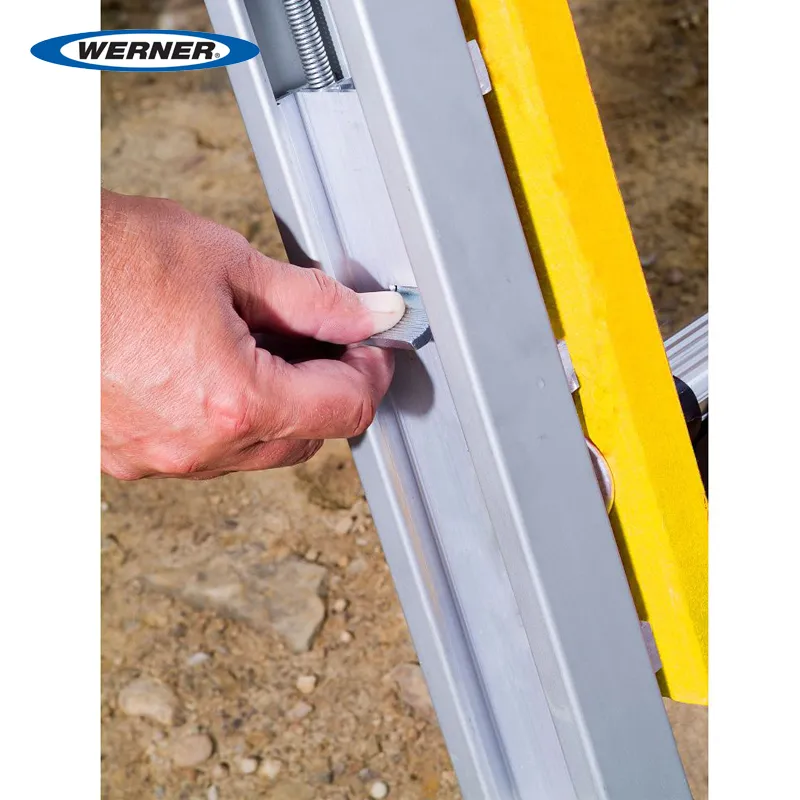

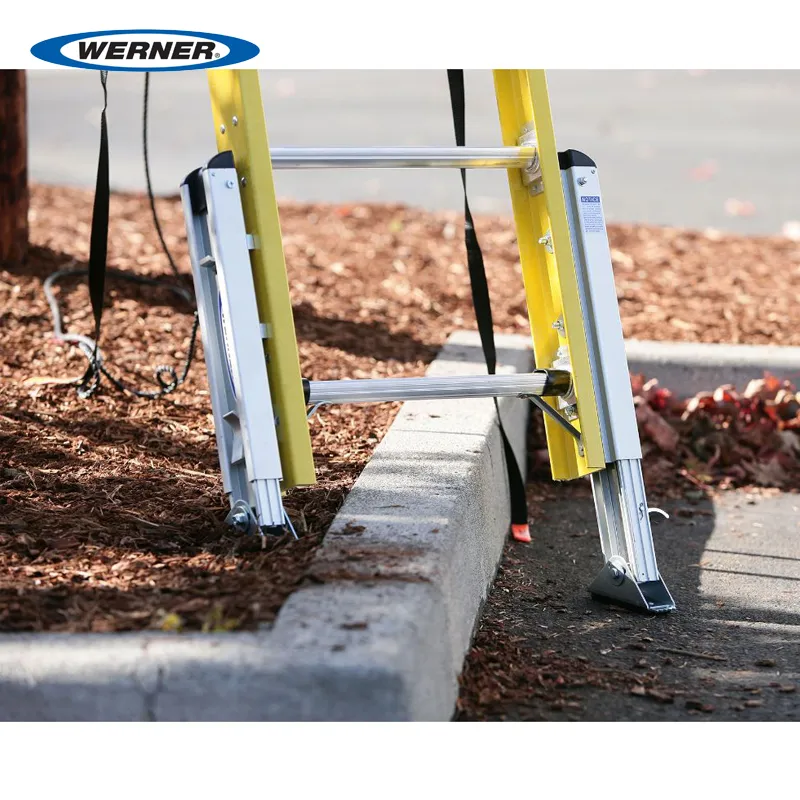

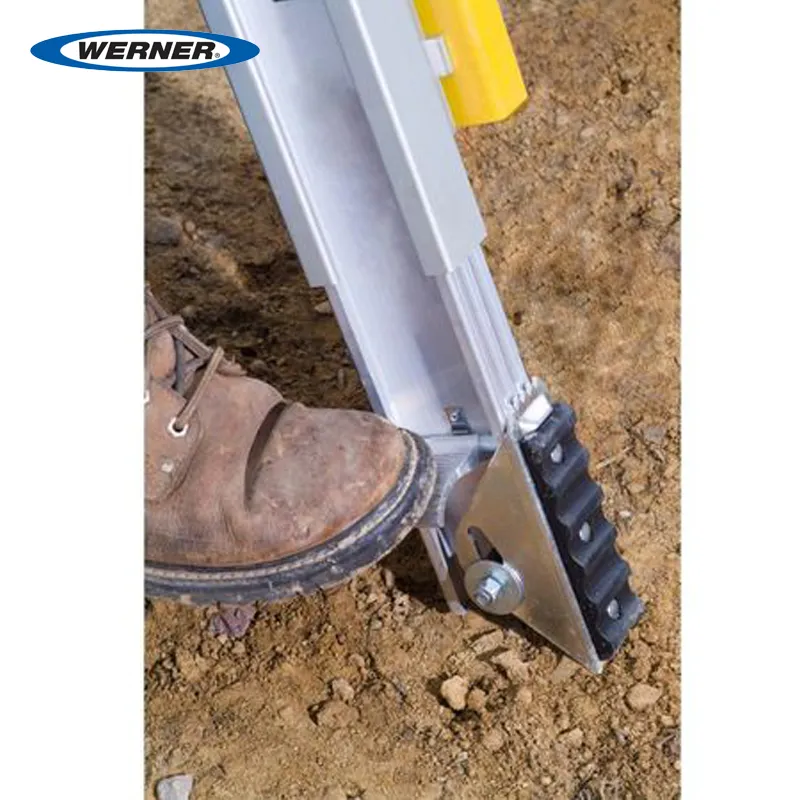

| Features | • Factory installed LeveLok® Leveler enables ladder to adapt to uneven terrain • With simple foot action, Leveler extends up to 10 inches in 3/16 in increments • Exclusive ALFLO® rung joint means TWIST-PROOF® performance • 1-5/8 in slip-resistant TRACTION-TRED® D-rungs • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement • Interlocking Side Rails with nylon coated internal rail guides on bottom of fly section increase ease of operation • External guides at top of base section securely interlock rails • Rugged gravity spring locks operate smoothly • Base and fly separate easily to use base section as single ladder • Rugged, heavy duty extruded rung locks are spring loaded to operate smoothly • Pre-pierced holes for easy field installation of accessories • Dual action feet with slip-resistant pad and spur plate for use on hard or penetrable surfaces • Mar-resistant molded end caps • Ideal for utility and telecommunication industries • LeveLok® is a registered trademark of the LeveLok Corporation. |
| *Please allow some +- tolerance in measurement | |
| Features | Size/Details |
|---|---|
| Size | 28 ft |
| Max. Safe Working Height | 25 ft |
| Max. Open Extended Length | 25 ft |
| Style | Multi Section |
| Duty Rating | Type IAA Duty Rating |
| Rung Type | D-Rung |
| Foot Material | Slip-resistant pad |
| Number of Sections | 2 |
| Base Width | 19 in outside rails, 22-3/4 in outside shoes |
| Certifications | ANSI A14.5 (2007); OSHA |
| Approx. Closed Length | 14 ft |
| Reach Height | 27 ft |
| Approx. Shipping Weight Lbs. | 75 |
| Approx. Cu. Ft. Per Unit | 12 |
